How to Use A Dental Handpiece Lubricating Machine?

The longevity of dental air-driven drillers depends greatly on good usage habits and timely maintenance. Among other things, dental handpiece lubricating oil machine plays a big role in the care and maintenance of air turbine handpieces, as well as saving time and maintaining a clean environment for dentists and assistants.

Inspection before starting the dental handpiece lubricator

1. Whether there is enough dental handpiece oil in the oil storage tank.
2. Whether the sealing ring of the oil storage tank lid is in fixed position and tightened.
3. Whether the air source is connected.
4. Whether the power supply is connected.
5. Check the air pressure range(2.2kg/cm2 -25kg/ cmp).

How to use the dental handpiece lubricating machine

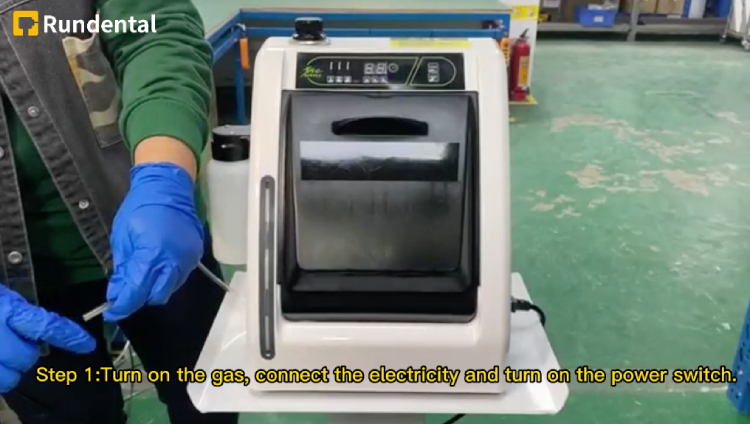

Step 1: Turn on the gas, connect the electricity and turn on the power switch on the dental handpiece oil machine.

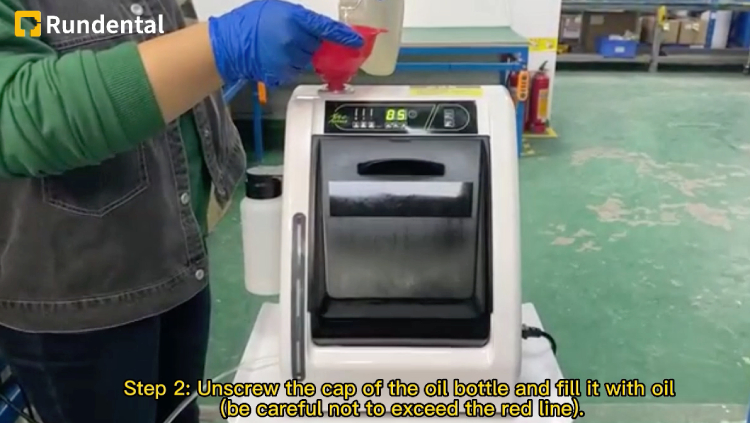

Step 2: Unscrew the cap of the oil bottle and fill it with turbine handpiece oil
(be careful not to exceed the red line).

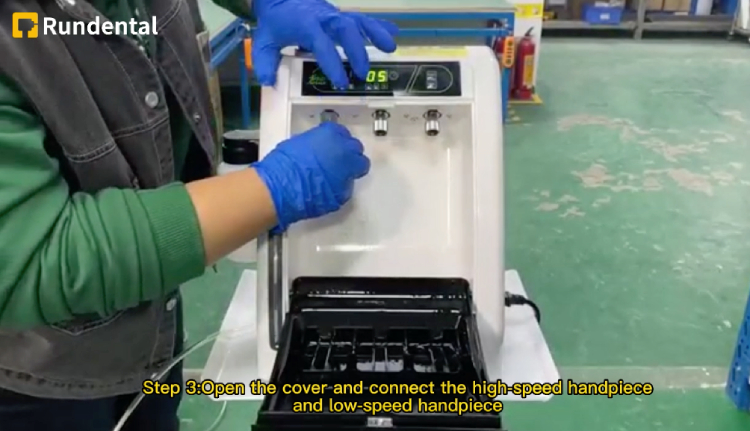

Step 3: Open the cover and connect the dental high-speed turbine
and dental low-speed handpiece.The numbers 1, 2 and 3 are in the order of the three China dental handpieces. If you don’t need them to work at the same time, just press the corresponding handpiece’s number.

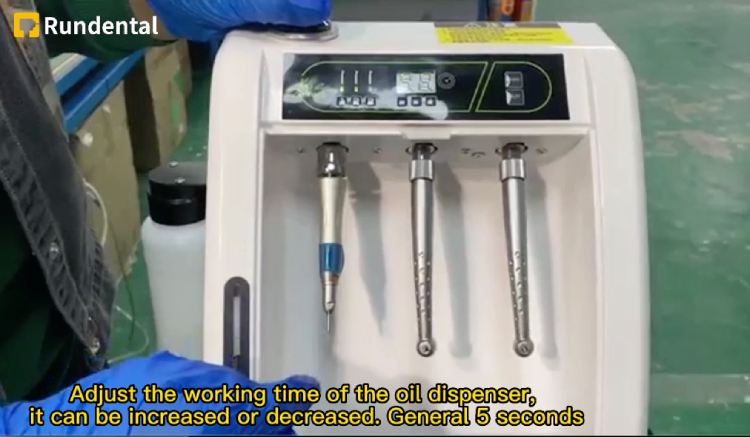

Step 4: Press “SET” button on the dental handpiece maintain lubricating machine. Adjust the working time of the oil dispenser, it can be increased or decreased. General 5 seconds for dental air turbine handpiece.

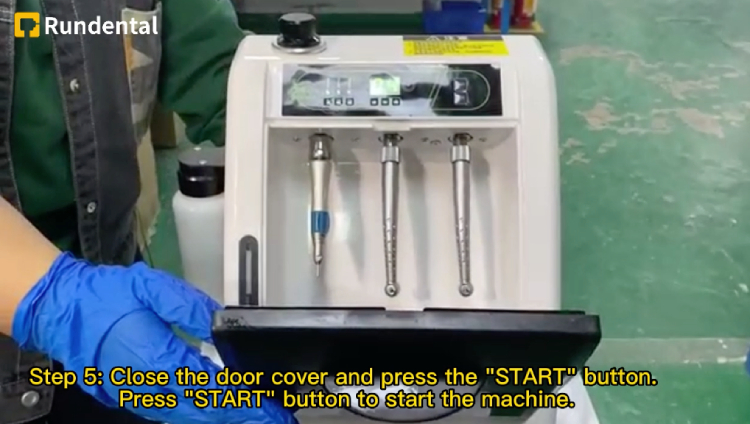

Step 5: Close the door cover and press the “START” button.Press “START” button to start the machine.

For more information you can refer to Rundental handpiece oil system, and if like our Rundental handpiece lubricating maintain machine, welcome to send orders to us.
